Active Directory Synchronization

Context​

Avanteam enables identity management automation through synchronization with your enterprise directory (AD/LDAP).

Prerequisites​

Prerequisites
  • Service account with read permissions on Active Directory
  • Access to administration tools (SyncTool, AdminTools)
  • For Azure AD: Application registered in Azure portal with appropriate permissions
  • System administration rights

Operating Principle​

  • Automation: Accounts are automatically created or updated during first login (via ADFS/SSO) or by a nightly scheduled task (SynchroADFS).
  • "Network" Origin: When this mode is active, certain user profile fields are read-only (grayed out) because they are directly managed by your IT department (e.g., Name, Email, Department).
  • Attribute Mapping: Synchronization automatically retrieves key metadata:
    • Manager: To build the organizational chart without manual entry.
    • Service/Company: To assign the user to the correct structure node.
  • Single Sign-On (SSO): Users don't need to enter a password in Avanteam; the system recognizes their open Windows session.

Technical Implementation of AD Sync​

Configuration is typically performed via the SyncTool or in advanced directory settings:

Connection​

Enter the LDAP path (e.g., LDAP://DC=mycompany,DC=com) and credentials for a service account with read permissions on AD.

Extraction Filters​

Define rules to target users (e.g., (&(objectCategory=person)(objectClass=user)(memberOf=CN=Avanteam_Group,...)).

Field Mapping​

Associate AD attributes with Avanteam fields:

  • sAMAccountName → Username
  • mail → Email
  • manager → Manager

Scheduling​

Enable the synchronization agent to automate updates (daily frequency recommended).

Azure AD Synchronization​

For cloud environments, Avanteam also offers synchronization with Azure Active Directory.

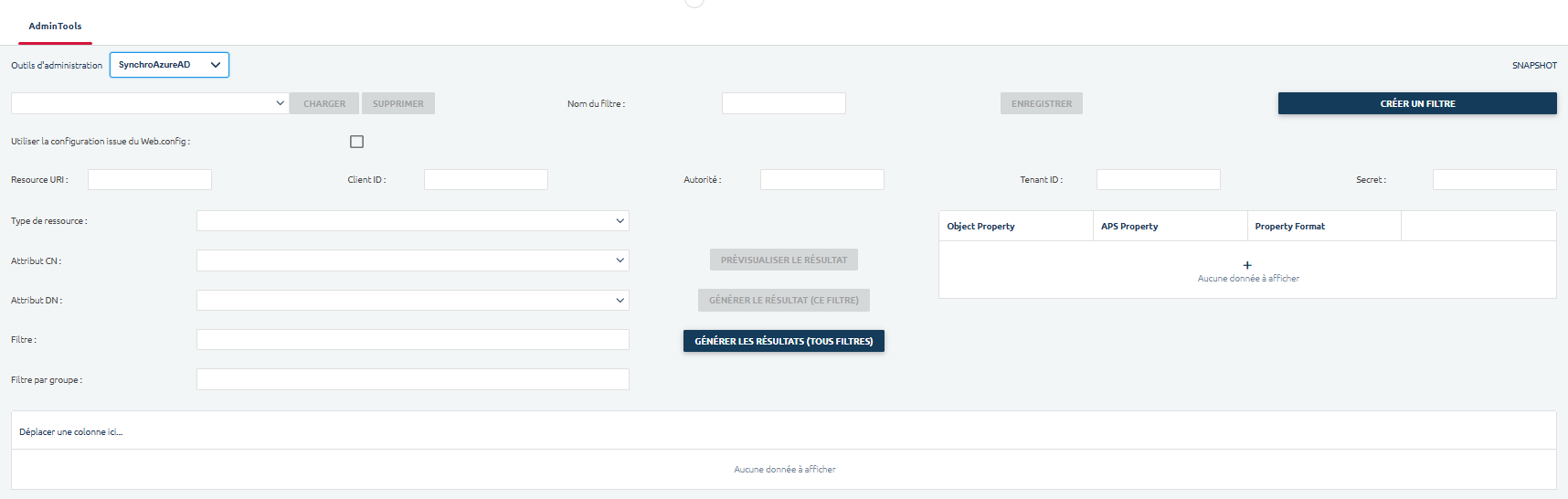

Access: Menu Tools > AdminTools > Select SynchroAzureAD from the dropdown list.

Azure AD Synchronization

Technical Connection Parameters​

These fields establish the secure link with your application registered in the Azure portal:

  • Use configuration from Web.config: If checked, the system ignores the fields below and uses technical parameters entered directly in the server configuration file.
  • Resource URI: The Microsoft Graph resource identifier (typically https://graph.microsoft.com).
  • Client ID: The Application ID generated when creating the application in Azure AD.
  • Authority: The authentication service URL (e.g., https://login.microsoftonline.com/).
  • Tenant ID: The unique identifier of your Azure AD directory (Directory ID).
  • Secret: The secret key (Client Secret) generated in Azure to authorize the connection.

Synchronization Filter Configuration​

You can precisely define who should be imported:

  • Resource Type: Allows choosing between synchronizing Users or Groups.
  • CN / DN Attribute: Identifies the Azure properties to use as "Common Name" and "Distinguished Name" (typically displayName and id).
  • Filter: Allows entering an OData query to restrict the import (e.g., import only users whose department is "Quality").
  • Group Filter: Allows synchronizing only members belonging to a specific Azure AD group.

Property Mapping​

This section defines the correspondence between Azure data and Avanteam fields:

  • Object Property: The source property in Azure AD (e.g., mail, givenName, surname).
  • APS Property: The destination field in the Avanteam user profile (e.g., Email, First Name, Last Name).
  • Property Format: Defines if the data requires special processing (Text, Date, etc.).

Synchronization Actions​

  • PREVIEW RESULT: Displays the list of users who would be affected without making actual changes. Essential for verifying your filters.
  • GENERATE RESULT (THIS FILTER): Runs import/update only for the currently selected filter.
  • GENERATE RESULTS (ALL FILTERS): Runs a global synchronization by chaining all configured rules.
Warning

A poorly configured synchronization can disable a large number of users or create duplicates. Always use the Preview button before running an actual generation.
